24 Strand 2x12f OS2, 24 Strand 2x 12f OM4, TiniFiber Micro ArmorTM + Steel Braid, Singlemode OS2, Multimode OM4, 250 m Sub-unitized, RISER UV, BLACK, Riser, Indoor Outdoor Premise, Duct, Conduits, and Patch
TF48H-24OS2-24OM4-RIO
Specification
| Part Number | TF48H-24OS2-24OM4-RIO | Strand Count | 24 |
| Fiber Category | Singlemode OS2 | Multimode OM4 | Core/Cladding | 9/125 | 50/125 |
| Jacket Type | RISER UV | BLACK | Application Uses | Indoor Outdoor Premise, Duct, Conduits, and Patch |
| Construction | 250 m Sub-unitized | Maximum Attenuation | ≤0.36 dB/KM @ 1310nm |≤0.23 dB/KM @ 1550nm / ≤3.0 dB/km @ 850 nm | ≤1.5 dB/km @1300 nm |

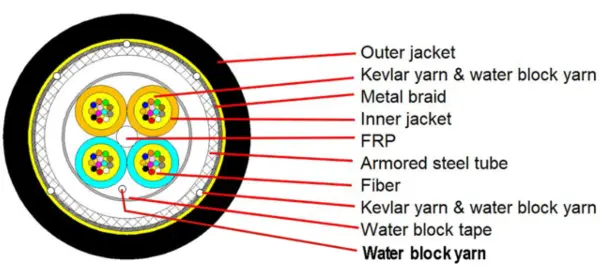

| Water Block | Yes | Armor | TiniFiber Micro ArmorTM + Steel Braid |
| Maximum Tensile Strength (Dynamic / Static) | 800 N | 400 N | Maximum Crush Resistance (Dynamic / Static) | 20 kN/m | 5 kN/m |
| Minimum Bend Radius (Dynamic / Static) | 20D | 10D | Nominal Outer Diameter | 10.5mm ± 0.5mm |
| Cable Weight | 174 kg/km (~117 lbs/kft) | Installation Temperature | 0 to 60 °C (32 to 140 °F) |
| Operation Temperature | -15 to 60 °C (5 to 140 °F) | Storage Temperature | -15 to 60 °C (5 to 140 °F) |
| Standards | Telcordia GR-20, TIA-568.3, ICEA-S-104-696 | Patent Number | View Patent Notices |
TiniFiber® Micro Armor Fiber™ Key Features
| Feature | Benefits |
|---|---|
| Micro Armor Fiber™ |
1. The smallest OD of any armor compared to conventional optical fiber cable in size and flexibility 2. Lightest and smallest armor makes routing and installation faster and easier 3. Cables are up to 65% smaller and 75% lighter than conventional Aluminum Interlocking Armor (AIA) |
| Encased Stainless Steel Coiled Tubular Armor |
1. Provides the strongest armor with smallest bend radius and designed for all indoor & outdoor conditions 2. Crush and rodent resistance |
| Outer Jackets | 1. All jackets and colors for Riser, Plenum, Indoor/Outdoor, LSZH, Burial & Industrial projects |
| Multimode/Single Mode Fibers |
1. OS2, OM1, OM3, OM4 from 1 to 144 Fibers (250m/900m/Ribbon) 2. Compatible with all standard connectors |
| Kevlar | 1. Adds tensile strength and flexibility |
