Micro Armor® Removal Tool

Simplify Fiber Prep with the M.A.R.T

The Micro Armor Removal Tool (M.A.R.T) is designed to make fiber prep faster, easier, and more precise. Engineered for TiniFiber’s patented stainless steel-Kevlar® Micro Armor Fiber, this compact tool cleanly separates jacket from fiber without damage, helping installers work quicker while protecting cable integrity.

The M.A.R.T accommodates up to 3mm of Micro Armor to allow the separation of the Micro Armor accurately and with ease – speeding up installation time while maintaining Fiber integrity.

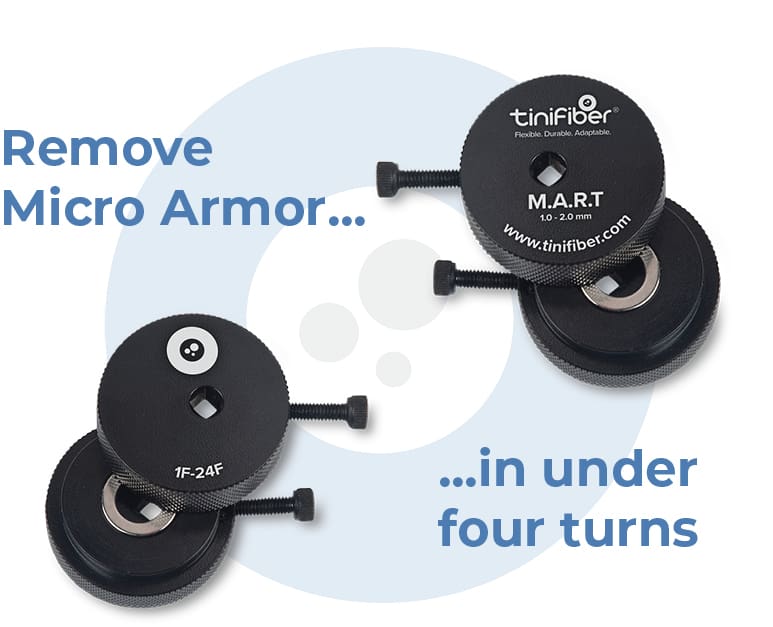

With a secure magnetic clamp and smooth counter-rotation design, the M.A.R.T removes Micro Armor in under four turns. That means less time on site, less risk of fiber damage, and more consistent results.

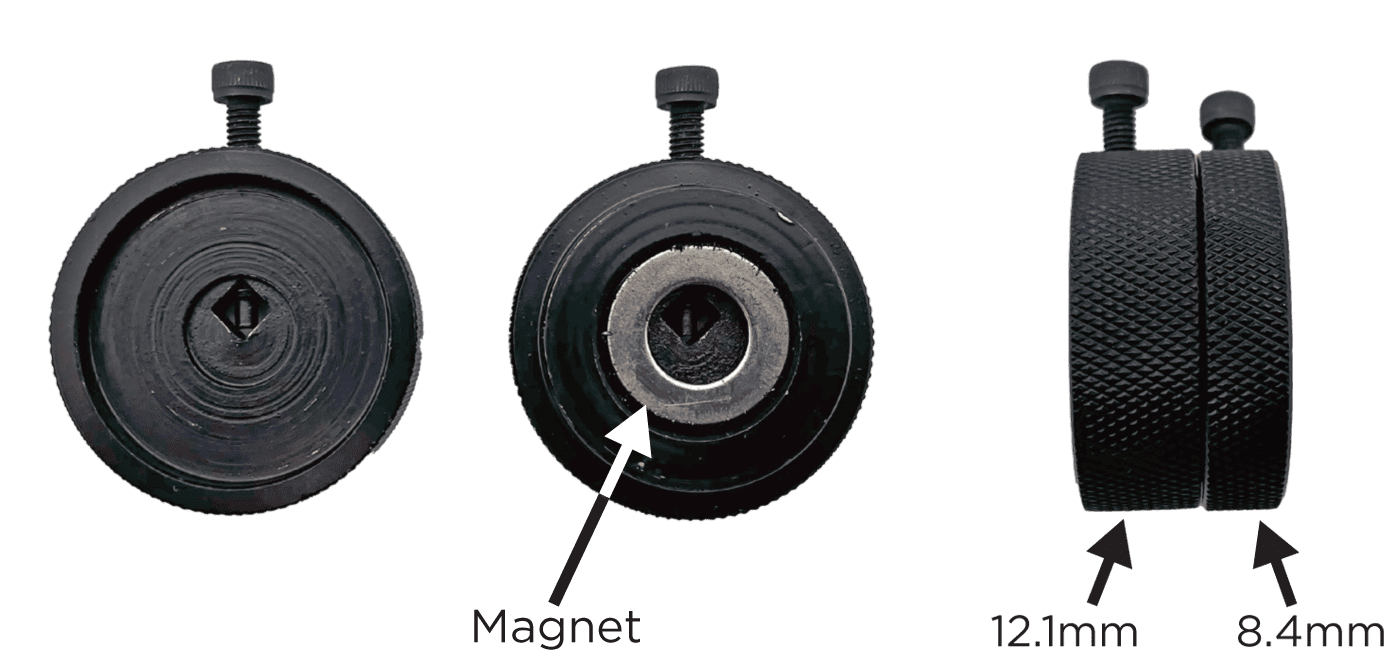

2 Separate Discs Closed Position

The Micro Armor Removal Tool is designed to remove the Micro armor in 1-24 strand Micro Armor Fiber Cables.

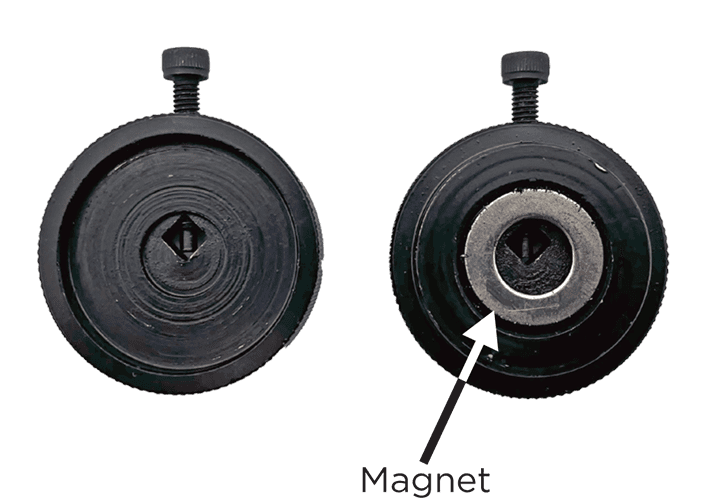

2 Separate Discs

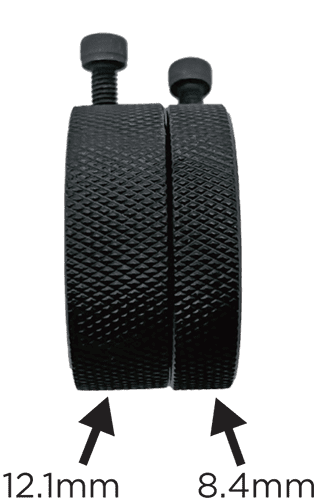

Closed Position

The Micro Armor Removal Tool is designed to remove the Micro armor in 1-24 strand Micro Armor Fiber Cables.

Features & Benefits

Smaller Cable Diameter

TiniFiber’s Micro Armor™ Fiber Optic Cable features a Kevlar/steel design, offering 65% smaller and 75% lighter cables compared to traditional AIA, without compromising durability.

Increased Flexibility

Unlike traditional AIA, which has a limited flex angle, TiniFiber’s Micro Armor™ Cable allows tighter turns and works well in constrained conduits while maintaining protection.

Durable Design

TiniFiber's Micro Armor™ Cable is engineered to be crush-proof, rodent-resistant, and weatherproof for reliable performance in tough environments.

Smoother Jacket

With its smooth jacket and integrated footage markers, TiniFiber Micro Armor™ Cable offers easier, snag-free pulls in tight spaces and makes measuring and carrying on the jobsite faster and more precise than AIA’s ridged design.

Rodent Resistant

The Micro Armor™ Cable’s Kevlar and stainless-steel construction resists damage from rodents and birds, ensuring the cable’s long-term protection.

OSHA Safe

TiniFiber’s Micro Armor™ Cable is lightweight, easier to handle, and reduces the risk of injuries on the jobsite, cutting installation costs and enhancing overall safety.

Lower Shipping Cost

The lightweight, flexible design allows TiniFiber’s Micro Armor Cable to be shipped in smaller, tighter reels, reducing storage costs and environmental impact.

Lower Installation Costs

With its lighter weight and flexibility, the Micro Armor™ Cable reduces the manpower and time needed for installation, resulting in lower overall installation costs.

Crush Resistant

The Kevlar/steel design provides exceptional durability, allowing the TiniFiber Micro Armor™ Fiber Optic Cable to withstand the weight of a vehicle passing over it.

Customizable Solutions

TiniFiber offers customizable Micro Armor™ Cable options, including single-mode or multi-mode fibers, varying fiber counts, lengths, jackets for environmental protection, and color coding to suit specific needs.

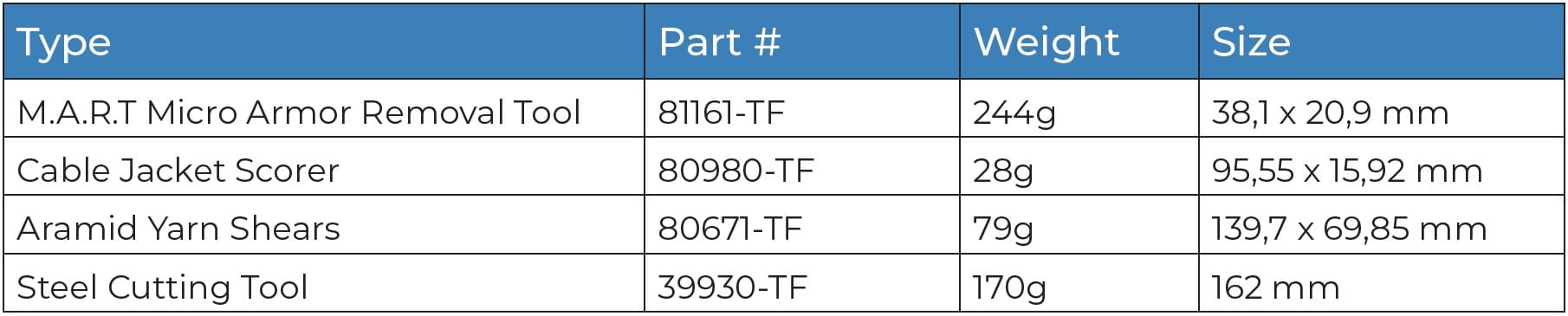

Tool Specs

Instructions

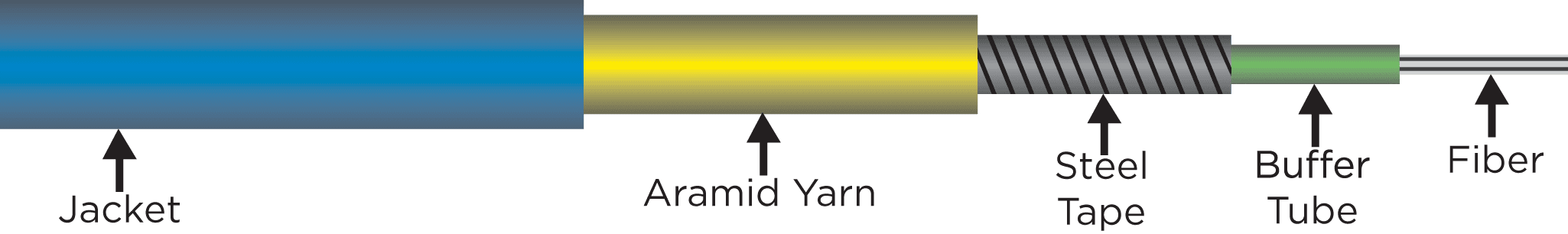

Step 1:

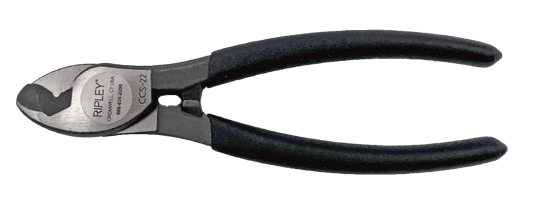

Cut the optical cable with a steel cutter, like the Ripley CCS 22.

Step 2:

To score and remove 1-24 fiber count cable jackets, use the Miller FTS Cable Jacket Scorer or similar tool.

Step 3:

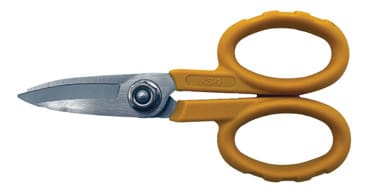

Cut the aramid yarns to the specified length, with the Miller KS-1 aramid yarn shears or similar tool.

Step 4:

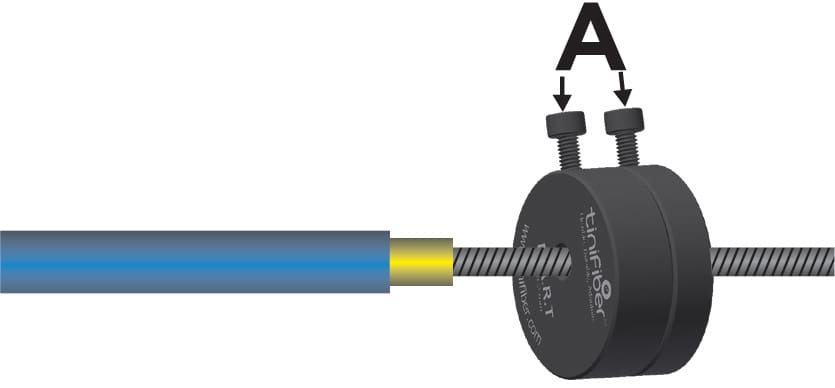

Release the screws (A) from the removal tool and insert the cable into the hole in the thick disc to the desired removal point and tighten the screws with hand force. The armored steel tape should be secure.

Step 5:

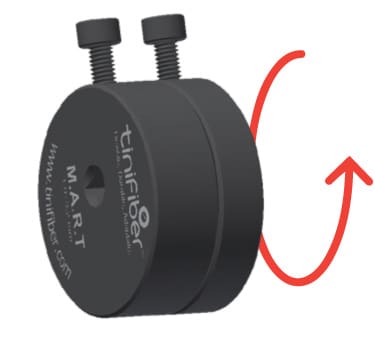

Make 3 turns or the maximum it will allow with the small (right) disc in a clockwise direction. Release the screw on the smaller disc and remove the disc.

Step 6:

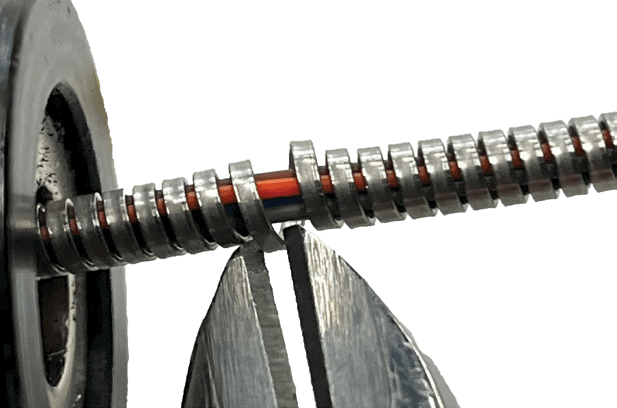

Cut the steel tape at the position where it is widened and remove the armoring. Use a small steel cutter with fine jaws like the Ripley CCS 22.

WARNING! THIS TOOL IS NOT PROTECTED AGAINST ELECTRICAL SHOCK! Always use OSHA/ANSI/CE or other industry approved eye protection when using tools. This tool is not to be used for purposes other than intended. Read carefully and understand instructions before using this tool.
