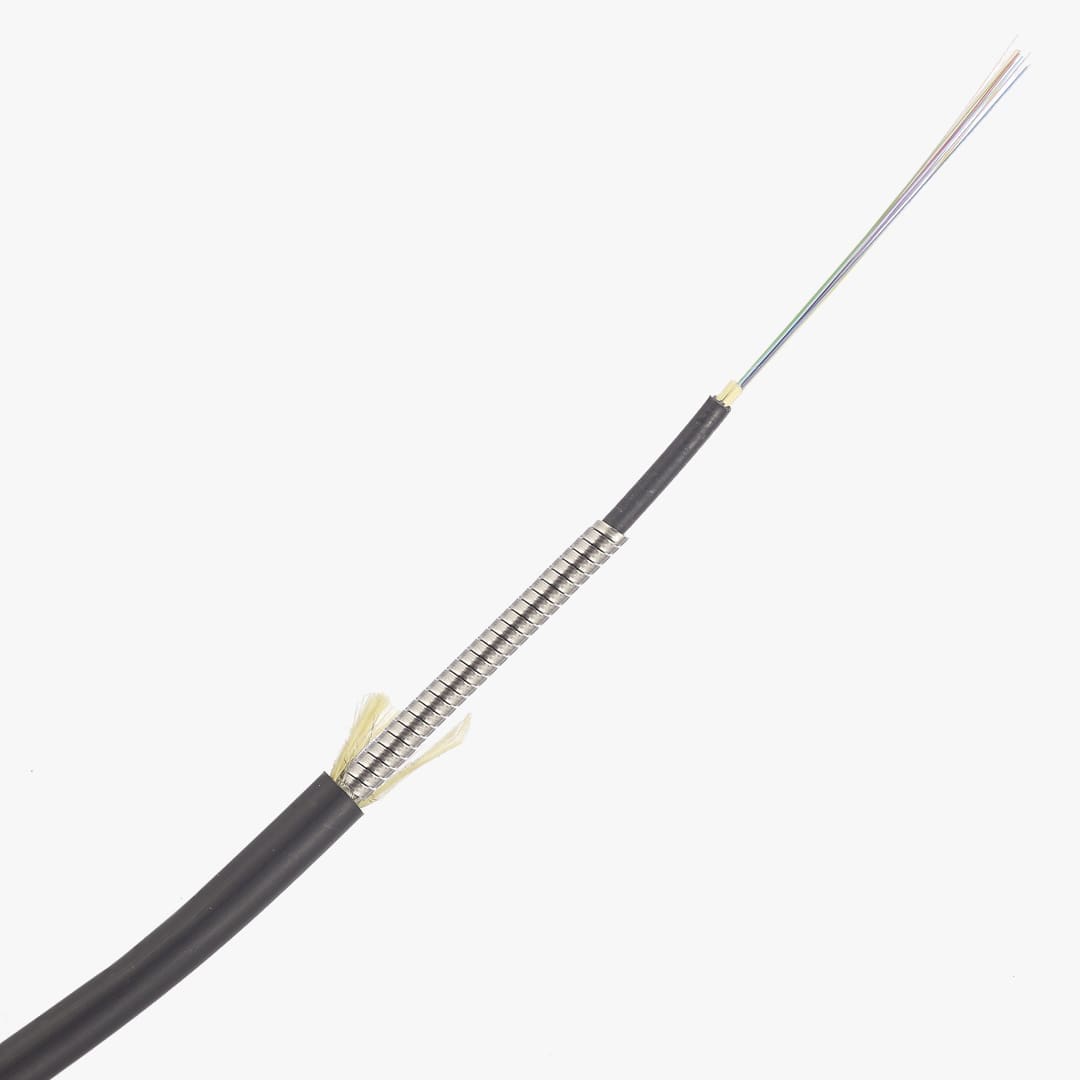

12 Fiber OM3 250um Riser Indoor/Outdoor Armored Fiber Optic Cable

PART #: TF12-OM3-RIO

Micro Armor Fiber™
  • The smallest OD of any armor compared to conventional optical fiber cable in size and flexibility
  • Lightest and smallest armor makes routing and installation faster and easier
  • Cables are up to 65% smaller and 75% lighter than conventional Aluminum Interlocking Armor(AIA)
Encased Stainless Steel Coiled Tubular Armor
  • Provides the strongest armor with maximum bend radius and designed for all indoor & outdoor conditions
  • Crush and rodent resistant
Outer Jackets
  • All jackets and colors for Riser, Plenum, Indoor/Outdoor, LSZH, Burial & Industrial projects
MultiMode / SingleMode Strands
  • OS2, OM1, OM3, OM4 from 1 to 144 Strands (250u/900u/Ribbon)
  • Availale in all standard connectors
Kevlar Fiber Strands
  • Adds tensile strength and flexibility

Additional information

Environment:

Conduits, Duct, Indoor/Outdoor, patch, Riser

Jacket Type

Riser

Fiber Count:

12

Fiber Category:

MultiMode Fiber (OM3)

Fiber Type:

250um

Fiber Core/Cladding Diameter:

50±2.5um/125.0±0.8

Wavelengths/Max. Attenuation:

850 nm/<3.0dB/km, 1300 nm/<1.0dB/km

Nominal Outer Diameter:

5.5 mm

Weight:

45 kg/km

Min. Dynamic Bend Radius:

20D

Min. Static Bend Radius:

10D

Storage Temp:

-40 °C to 80 °C (-40 °F to 176 °F)

Installation Temp:

-30 °C to 80 °C (-22 °F to 176 °F)

Operation Temp:

-40 °C to 80 °C (-40 °F to 176 °F)

Max. Dynamic Tensile Strength:

800 N

Max. Static Tensile Strength:

600 N

Max. Dynamic Crush Resistance:

5000 N

Max. Static Crush Resistance:

3000 N

Stainless Steel Tube Outer Diameter:

3.5 mm

Stainless Steel Tube Inner Diameter:

2.8 mm

Steel Braid:

N/A

Water Block

Dry Block Tape

Kevlar:

1100dtex

Max. Data Rate:

40G / 150m

NEC Rating:

OFCR
