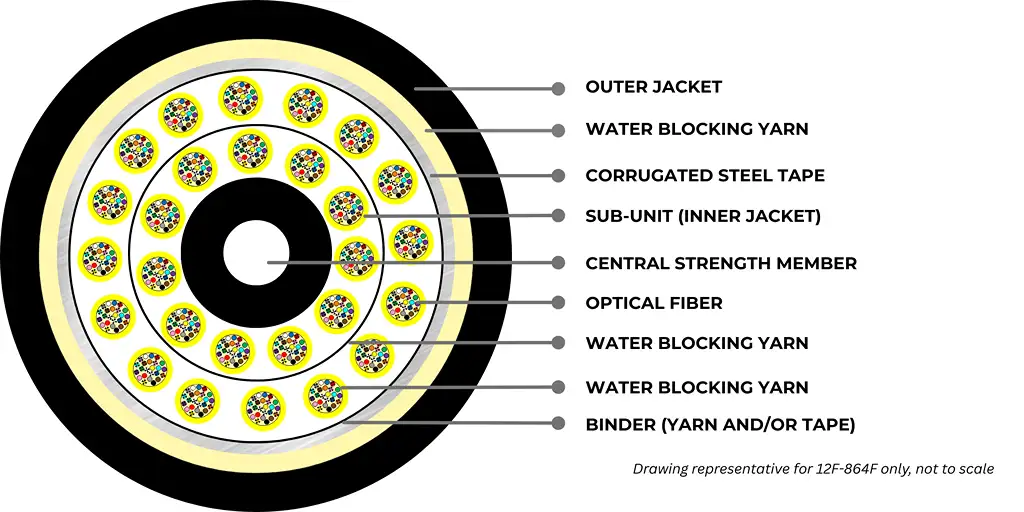

12 Fiber Corrugated Steel Tape Armor Singlemode OS2 Loose Tube Gel Free HDPE Black Outer Jacket Direct Burial Outside Plant, Aerial, Lashable
ST12-OS2-OSP
Specification
| Part Number | ST12-OS2-OSP | Revision Version | 1.1 |
| Strand Count | 12 | Fiber Type | G.652D |
| Fiber Category | Singlemode OS2 9/125 | Core/Cladding | 9/125 |
| Jacket Type | HDPE | BLACK | Application Uses | Direct Burial Outside Plant, Aerial, Lashable |
| Construction | 250 um | Maximum Attenuation | ≤0.36 dB/KM @ 1310nm |≤0.23 dB/KM @ 1550nm |
| Water Block | Yes | Armor | Corrugated Steel Tape |
| Maximum Tensile Strength (Dynamic / Static) | 2700 N | 900 N | Maximum Crush Resistance (Dynamic / Static) | 1000 N/100mm | 300 N/100mm |
| Minimum Bend Radius (Dynamic / Static) | 20D | 10D | Nominal Outer Diameter | 11.2 mm (±5%) |
| Cable Weight | 130 kg/km (±10%) | Installation Temperature | -30 to 70 °C (-22 to 158 °F) |
| Operation Temperature | -40 to 70 °C (-40 to 158 °F) | Storage Temperature | -40 to 70 °C (-40 to 158 °F) |
| Standards | Telcordia GR-20, TIA-568.3, ICEA-S-104-696 | Patent Number | View Patent Notices |
TiniFiber® Micro Armor Fiber™ Key Features
| Feature | Benefits |
|---|---|
| Micro Armor Fiber™ |
1. The smallest OD of any armor compared to conventional optical fiber cable in size and flexibility 2. Lightest and smallest armor makes routing and installation faster and easier 3. Cables are up to 65% smaller and 75% lighter than conventional Aluminum Interlocking Armor (AIA) |
| Encased Stainless Steel Coiled Tubular Armor |
1. Provides the strongest armor with smallest bend radius and designed for all indoor & outdoor conditions 2. Crush and rodent resistance |
| Outer Jackets | 1. All jackets and colors for Riser, Plenum, Indoor/Outdoor, LSZH, Burial & Industrial projects |
| Multimode/Single Mode Fibers |
1. OS2, OM1, OM3, OM4 from 1 to 144 Fibers (250m/900m/Ribbon) 2. Compatible with all standard connectors |
| Kevlar | 1. Adds tensile strength and flexibility |
