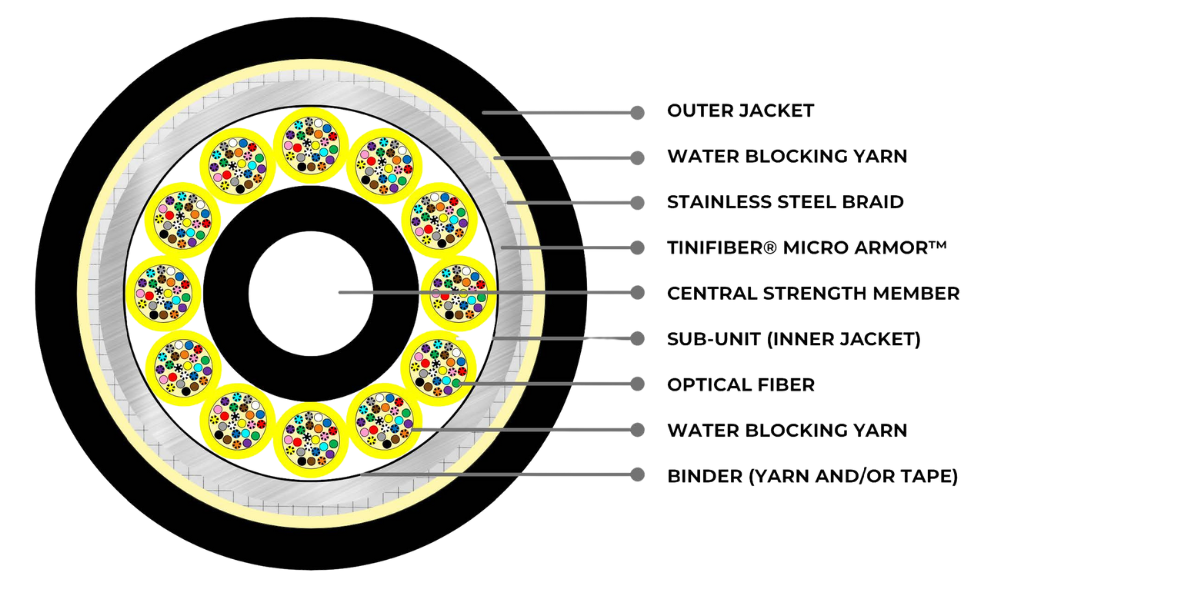

288 Strand 12x24f 250 μm Sub-unitized Singlemode OS2 9/125 TiniFiber® Micro Armor™ + Steel Braid YELLOW PLENUM (PVC) Indoor Premise, Duct, Conduits, and Patch
Applications: Indoor/outdoor Premise, Duct, Conduits, and Patch
TF288-OS2-LIO
Specification
| Part Number | TF288-OS2-LIO | Strand Count | 288 |
| Fiber Type | Corning ClearCurve® LBL G657A2 | Fiber Category | OS2 (288) |
| Environment | Indoor/Outdoor | Construction | 250 µm Sub-unitized |
| Maximum Tensile Strength (Dynamic / Static) | 2000 N | 1000 N | Maximum Crush Resistance (Dynamic / Static) | 30 kN/m | 10 kN/m |
| Minimum Bend Radius (Dynamic / Static) | 20D | 10D | Nominal Outer Diameter | 19.5±0.5 |
| Installation Temperature | -10 to +60 °C | Operation Temperature | -15 to +60 °C |
| UL Listed | Yes | Datasheet | View Datasheet |
TiniFiber® Micro Armor Fiber™ Key Features
| Feature | Benefits |
|---|---|
| Micro Armor Fiber™ |
1. The smallest OD of any armor compared to conventional optical fiber cable in size and flexibility 2. Lightest and smallest armor makes routing and installation faster and easier 3. Cables are up to 65% smaller and 75% lighter than conventional Aluminum Interlocking Armor (AIA) |
| Encased Stainless Steel Coiled Tubular Armor |
1. Provides the strongest armor with smallest bend radius and designed for all indoor & outdoor conditions 2. Crush and rodent resistance |
| Outer Jackets | 1. All jackets and colors for Riser, Plenum, Indoor/Outdoor, LSZH, Burial & Industrial projects |
| Multimode/Single Mode Fibers |
1. OS2, OM1, OM3, OM4 from 1 to 144 Fibers (250m/900m/Ribbon) 2. Compatible with all standard connectors |
| Kevlar | 1. Adds tensile strength and flexibility |
