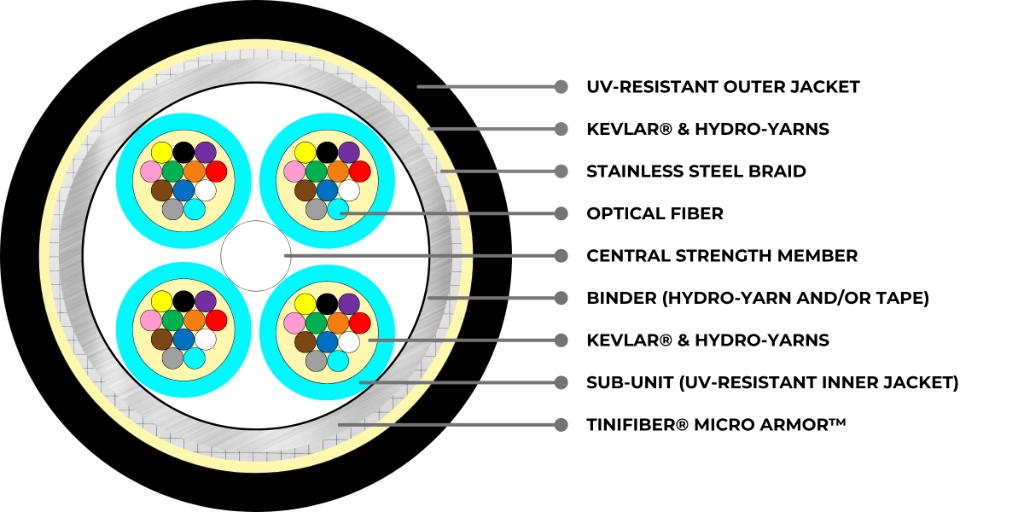

48 Strand 4x12f 250 µm Sub-unitized Multimode OM4 50/125 TiniFiber® Micro Armor + Steel Braid BLACK LSZH-UV (POE) Indoor/Outdoor Premise, Duct, Conduits, and Patch
Applications: Indoor/Outdoor Premise, Duct, Conduits, and Patch
TF48-OM4-LIO
Specification
| Strand Count | 48 | Jacket Type | Low Smoke Zero Halogen |
| Part Number | TF48-OM4-LIO | Construction | 250 µm Sub-unitized |
| Maximum Attenuation | 3.0 dB/km @ 850 nm | 1.5 dB/km @ 1300 nm | Water Block | Yes |
| Armor | Micro Armor + Steel Braid | Maximum Tensile Strength (Dynamic / Static) | 1400 N | 700 N |
| Maximum Crush Resistance (Dynamic / Static) | 30 kN/m | 8 kN/m | Minimum Bend Radius (Dynamic / Static) | 20D | 10D |
| Nominal Outer Diameter | 10.5±0.5 | Cable Weight | 131 kg/km (~88 lbs/kft) |
| Installation Temperature | 0 to 60 °C (32 to 140 °F) | Operation Temperature | '-40 to 70 °C (-40 to 158 °F) |
| UL Listed | Yes | Fiber Category | OM4 (50) |
| Environment | Indoor/Outdoor |
TiniFiber® Micro Armor Fiber™ Key Features
| Feature | Benefits |
|---|---|
| Micro Armor Fiber™ |
1. The smallest OD of any armor compared to conventional optical fiber cable in size and flexibility 2. Lightest and smallest armor makes routing and installation faster and easier 3. Cables are up to 65% smaller and 75% lighter than conventional Aluminum Interlocking Armor (AIA) |
| Encased Stainless Steel Coiled Tubular Armor |
1. Provides the strongest armor with smallest bend radius and designed for all indoor & outdoor conditions 2. Crush and rodent resistance |
| Outer Jackets | 1. All jackets and colors for Riser, Plenum, Indoor/Outdoor, LSZH, Burial & Industrial projects |
| Multimode/Single Mode Fibers |
1. OS2, OM1, OM3, OM4 from 1 to 144 Fibers (250m/900m/Ribbon) 2. Compatible with all standard connectors |
| Kevlar | 1. Adds tensile strength and flexibility |
