6 Strand, TiniFiber® Micro ArmorTM +Steel Braid, Multimode OM4 50/125, 900 μm Tight Buffer, LSZH, LSZH UV, Black, Indoor/Outdoor Premise, Duct, Conduits, and Patch
TF6-OM4-LIO
Specification
| Part Number | TF6-OM4-LIO | Strand Count | 6 |
| Fiber Category | Multimode OM4 50/125 | Jacket Type | LSZH-UV | BLACK |
| Application Uses | Indoor/Outdoor Premise, Duct, Conduits, and Patch | Environment | Indoor/Outdoor |
| Construction | 900 μm Tight Buffer | Maximum Attenuation | ≤3.0 dB/km @ 850 nm | ≤1.5 dB/km @1300 nm |
| Water Block | Yes | Armor | TiniFiber® Micro ArmorTM +Steel Braid |
| Maximum Tensile Strength (Dynamic / Static) | 600 N | 200 N | Maximum Crush Resistance (Dynamic / Static) | 30 kN/m | 5 kN/m |
| Minimum Bend Radius (Dynamic / Static) | 20D | 10D | Nominal Outer Diameter | 6.0±0.5 mm |
| Cable Weight | 56kg/km (0.12 lbs/ft) | Installation Temperature | 0 to 60 °C (32 to 140 °F) |
| Operation Temperature | -40 to 70 °C (-40 to 158 °F) | Storage Temperature | -40 to 70 °C (-40 to 158 °F) |
| UL Listed | Yes | Standards | Telcordia GR-20, TIA-568.3, ICEA-S-104-696 |
| Patent Number | View Patent Notices |

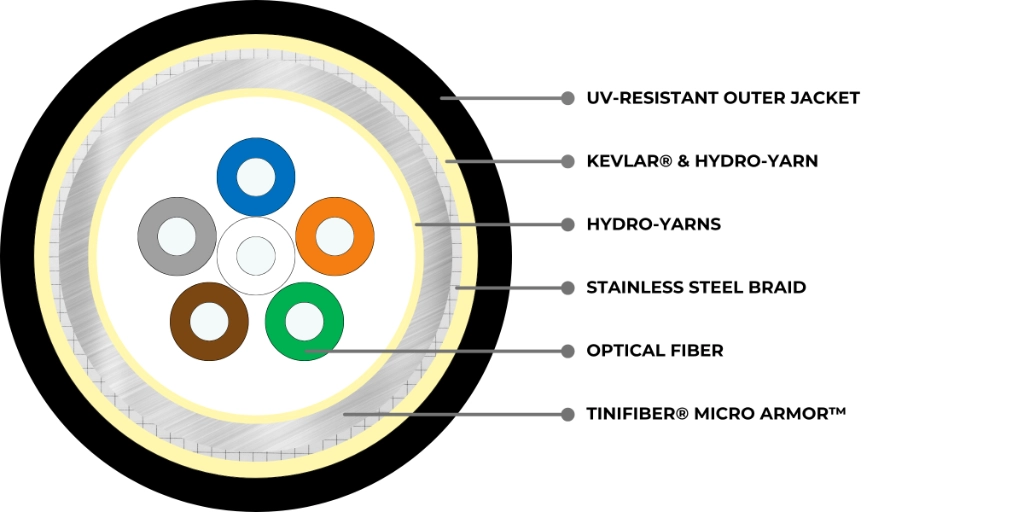

TiniFiber® Micro Armor Fiber™ Key Features
| Feature | Benefits |
|---|---|
| Micro Armor Fiber™ |
1. The smallest OD of any armor compared to conventional optical fiber cable in size and flexibility 2. Lightest and smallest armor makes routing and installation faster and easier 3. Cables are up to 65% smaller and 75% lighter than conventional Aluminum Interlocking Armor (AIA) |
| Encased Stainless Steel Coiled Tubular Armor |
1. Provides the strongest armor with smallest bend radius and designed for all indoor & outdoor conditions 2. Crush and rodent resistance |
| Outer Jackets | 1. All jackets and colors for Riser, Plenum, Indoor/Outdoor, LSZH, Burial & Industrial projects |
| Multimode/Single Mode Fibers |
1. OS2, OM1, OM3, OM4 from 1 to 144 Fibers (250m/900m/Ribbon) 2. Compatible with all standard connectors |
| Kevlar | 1. Adds tensile strength and flexibility |
